Custom Miniature Hydraulic Cylinders Manufacturer

Our mini hydraulic cylinders are 100% tested under 1.5 times rated pressure.
MOQ starts from 10 pieces, samples ready in 15 days.

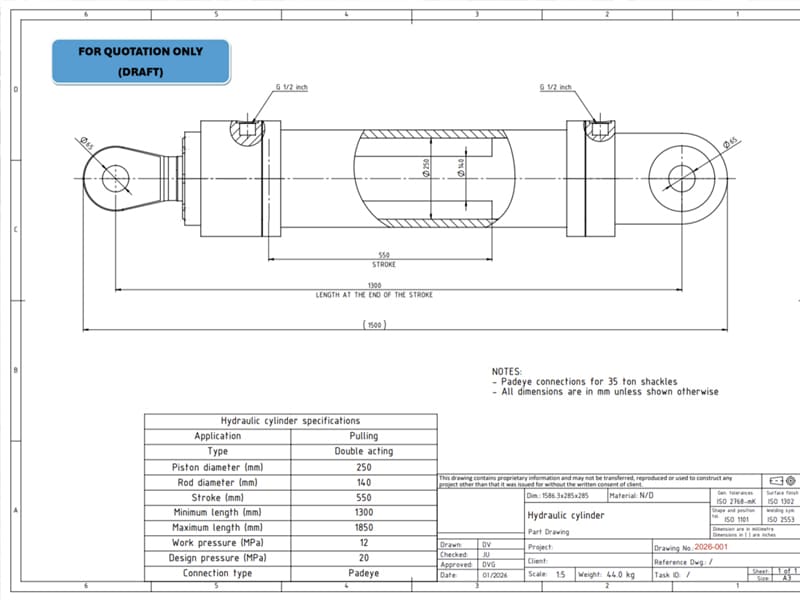

Send us your drawing, installation space for our review.

Brands We Serve in Hydraulic Industry

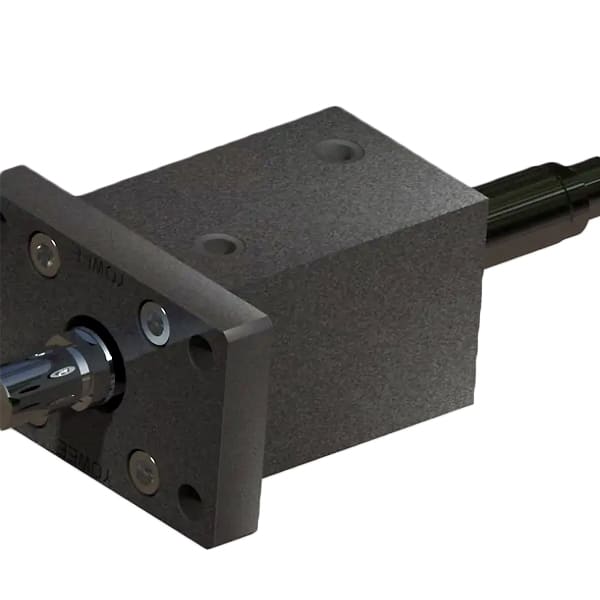

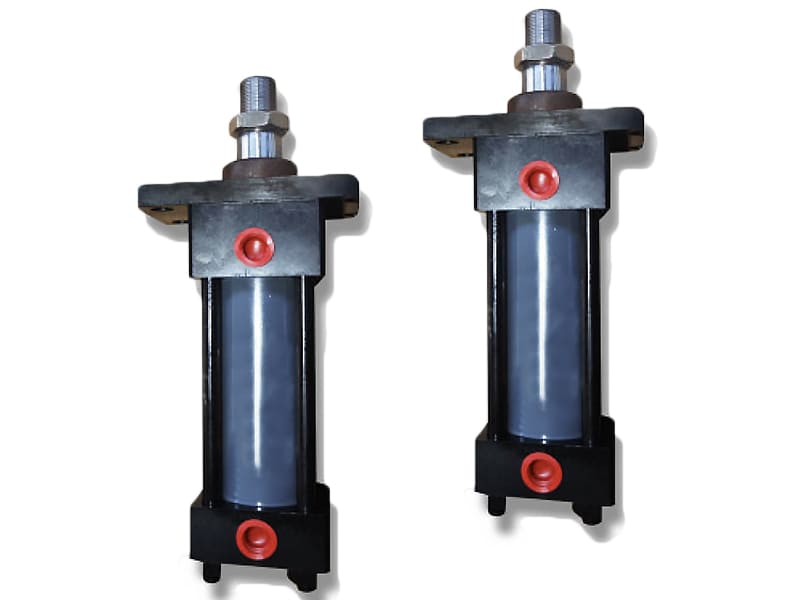

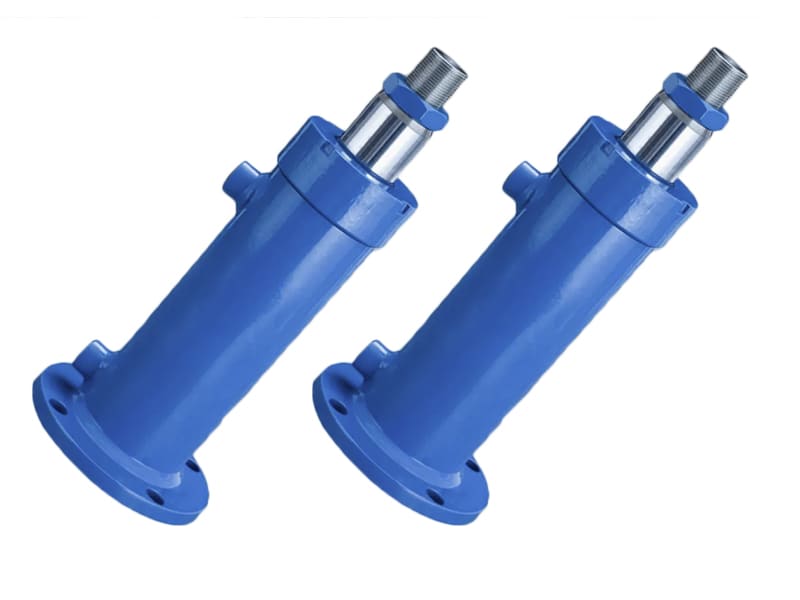

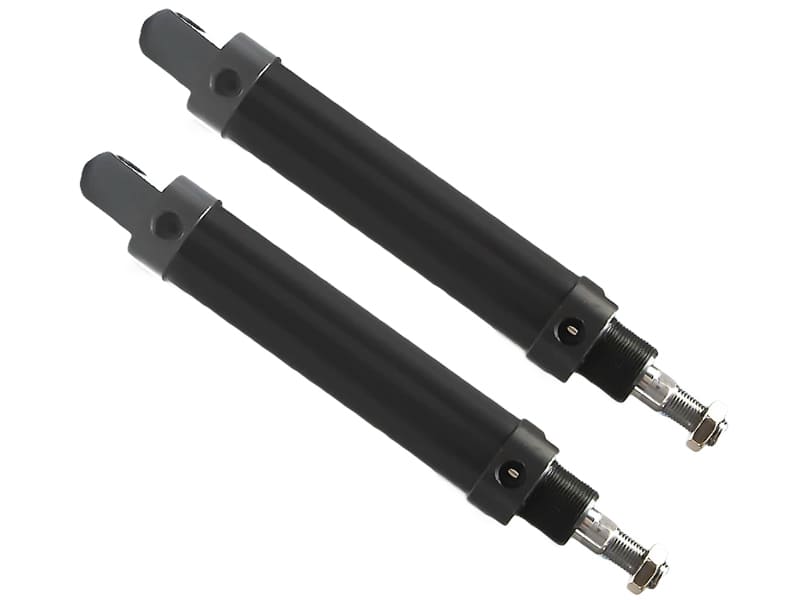

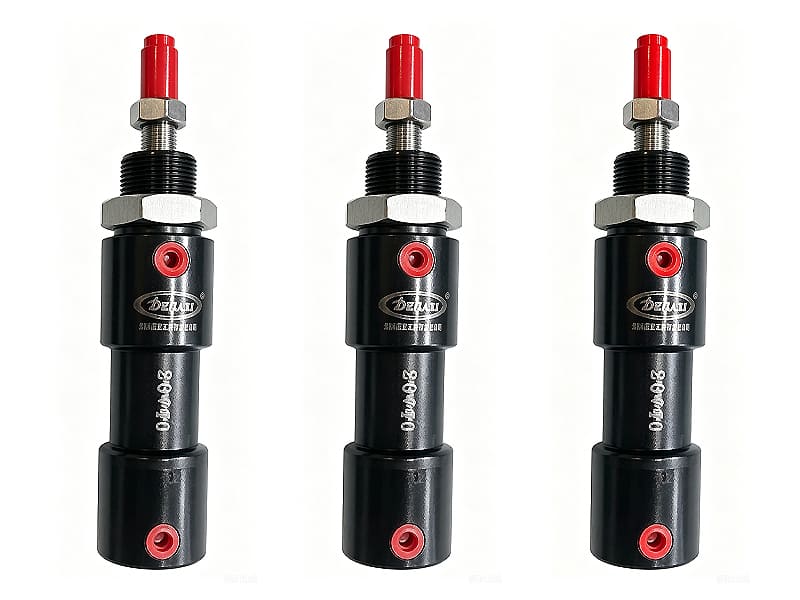

Miniature hydraulic cylinders

Our micro cylinders’ piston rods are fitted to customized high-precision sealing parts. Their matching surfaces are processed through high-precision grinding and mirror polishing, reducing surface roughness from Ra 0.4 down to Ra 0.1 to prevent oil leakage and guarantee smooth, stable long-term operation.

Customization is available according to your drawings and specific installation sizes.

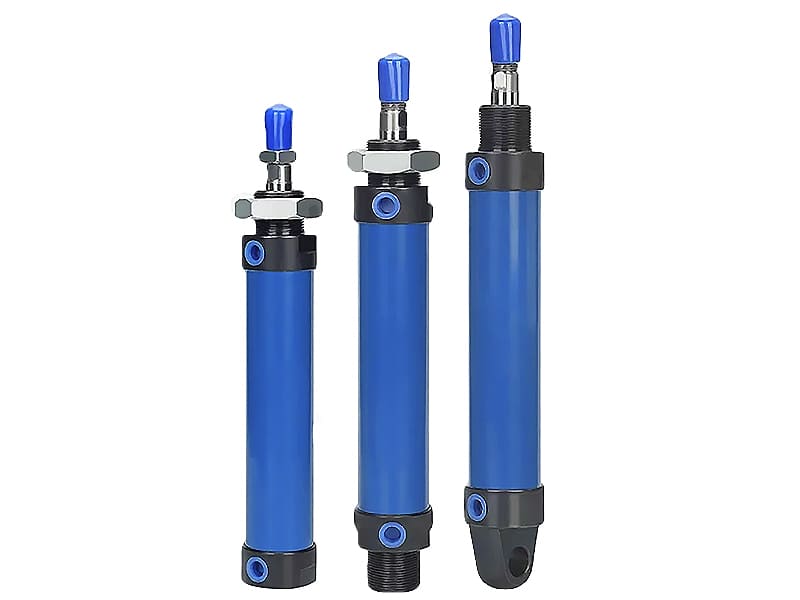

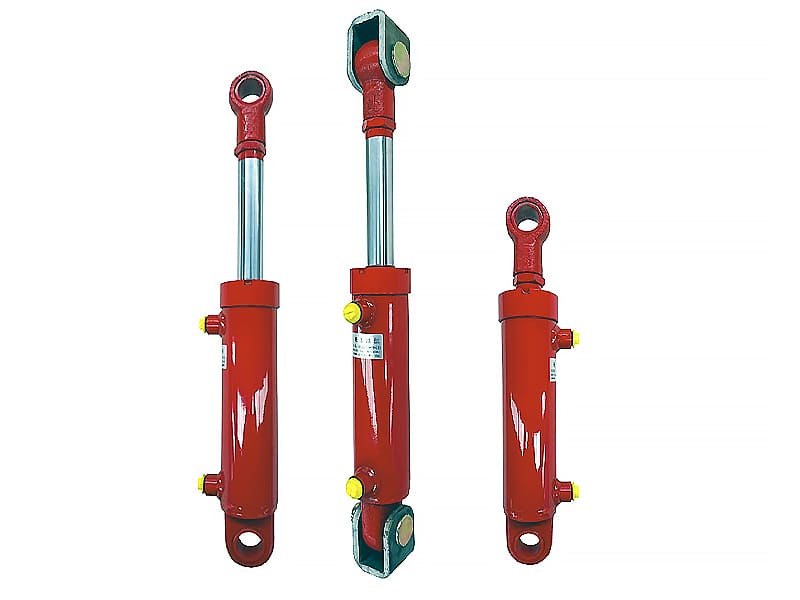

Our miniature hydraulic cylinders, compared to large hydraulic cylinders, have bore diameters ranging from 10mm to 25mm, with a rated working pressure of 10 MPa to 21 MPa. Despite their tiny size and compact layout, they can generate strong output force and maintain highly precise control, making them ideal for installation in limited spaces.

Our micro cylinders’ piston rods are fitted to customized high-precision sealing parts. Their matching surfaces are processed through high-precision grinding and mirror polishing, reducing surface roughness from Ra 0.4 down to Ra 0.1 to prevent oil leakage and guarantee smooth, stable long-term operation.

Customization is available according to your drawings and specific installation sizes.

Custom Solutions for Miniature Cylinders for All Industries

Our miniature hydraulic cylinders feature micro-level precision bore machining with bore diameters from 8mm to 25mm. Made of standard 40Cr steel or stainless steel, they undergo high-frequency quenching and hard chrome plating for excellent strength and durability. Equipped with M5 or G1/8 threaded ports to ensure stably operation under varying working pressures. Their full-thread outer diameter mounting design fits ideally into compact equipment spaces.

With over 15 years of development and manufacturing experience in non-standard small bore hydraulic cylinders, we are well aware that they have stringent requirements for friction performance and static pressure retention. We offer tailor-made sealing systems, compact rear-end-cap designs with integrated valve manifolds or micro sensors, and seal-material-based operating speed and ambient temperature recommendations.

We have dedicated flexible sample production lines to support non-standard customization and small-batch sampling. After receiving your drawings or customized requirements, we guarantee to provide production drawings and manufacturing processes within 48 hours, and the first samples can be delivered within 2-3 weeks at the earliest.

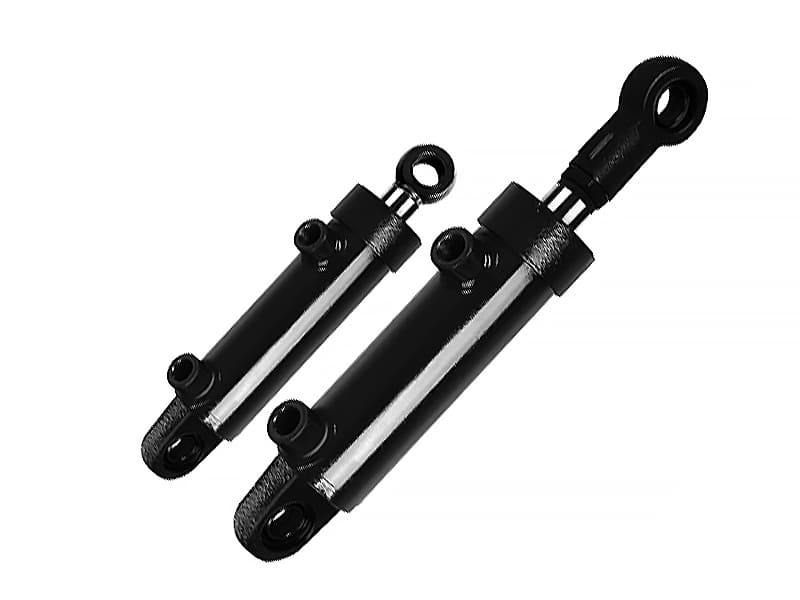

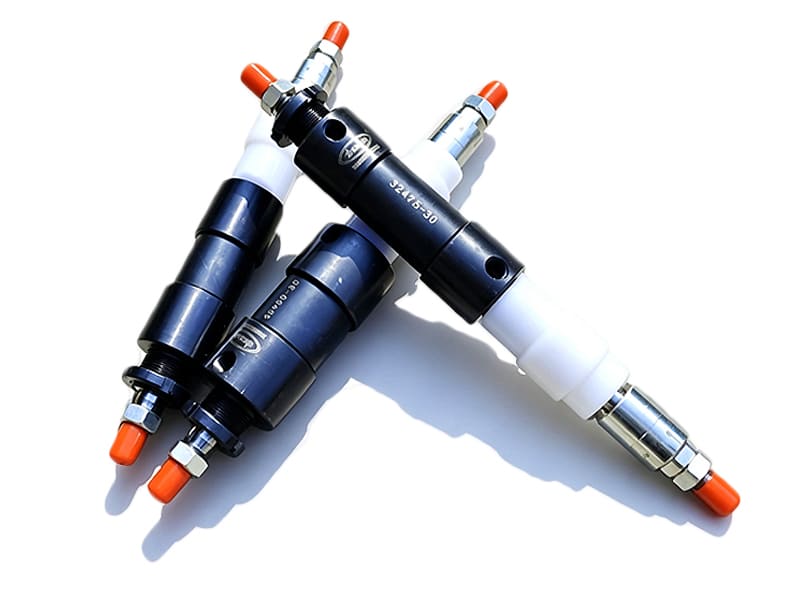

Miniature Hydraulic Cylinders

Applications of Miniature Cylinders

Medical and Surgical Robotics

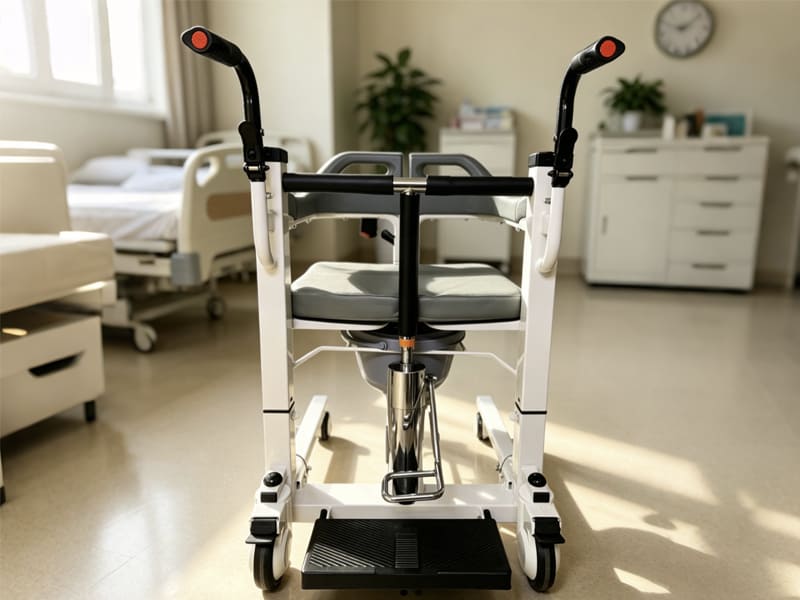

Mini hydraulic cylinders are widely used in surgical robots and high-end medical devices. They fit perfectly within the compact internal enclosures of precision instruments.

When the equipment is operating, the matched micro hydraulic pump units deliver hydraulic oil to control the robotic arm movements and small adjustments of surgical tables. The inner walls of the cylinders are mirror-polished to enable operation at ultra-low pressure and maintain nearly zero displacement during the 24-hour static pressure holding test, achieving extreme stability and ultra-quiet operation.

Laboratory Automation

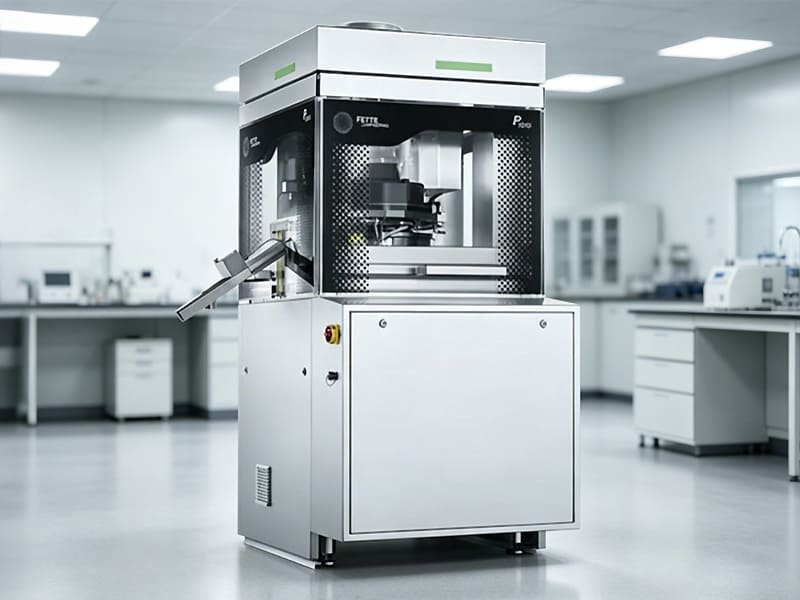

Miniature hydraulic cylinder is also used in laboratory automation. In automated liquid handling stations, test tube rack lifts and high-throughput screening equipment, they actuate grippers and fine-adjustment joints to deliver high-frequency, millimeter-level repeatable positioning.

They are ideal for cleanroom environments because they require no conventional hydraulic oil and produce no oil mist or particles. Fitted with ultra-low-friction seals, the cylinders eliminate stick-slip and motion lag, preventing contamination and movement deviation.

High-End RC Scale Models

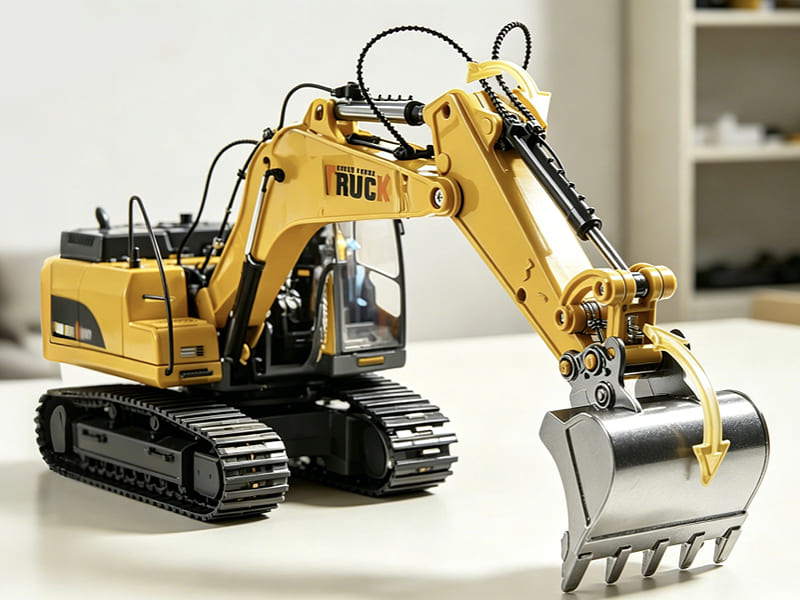

In the high-end RC construction model, small hydraulic cylinders serve as the driving unit to actuate the boom arm, stick arm and the bucket for digging and pushing actions, achieving excavation work.

This field have extremely stringent requirements on small bore hydraulic cylinders. Miniature cylinders provide long-term reliable performances, striking an optimal balance between high-pressure sealing and ultra-low friction. They guarantee leak-free operation under prolonged high-pressure loading with consistently smooth motion.

Compact Hydraulic Tools ＆ Rescue Equipment

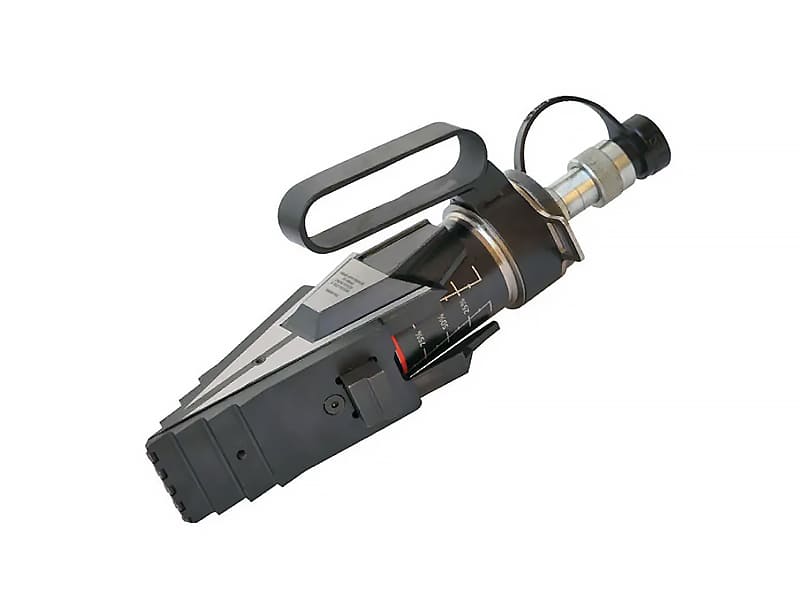

Miniature hydraulic cylinders are used in compact hydraulic tools and rescue equipment. They turn ultra-high oil pressure into tons of force, providing strong breaking and lifting power inside small tool shells.

Equipped with high-strength bodies, sealing systems, and back-up rings, these cylinders can safely withstand ultra-high pressure and maintain steady. Lightweight cylinder bodies enable instant huge force output during urgent rescue missions, with excellent safety and stability.

Micro-Agricultural and Special Robots

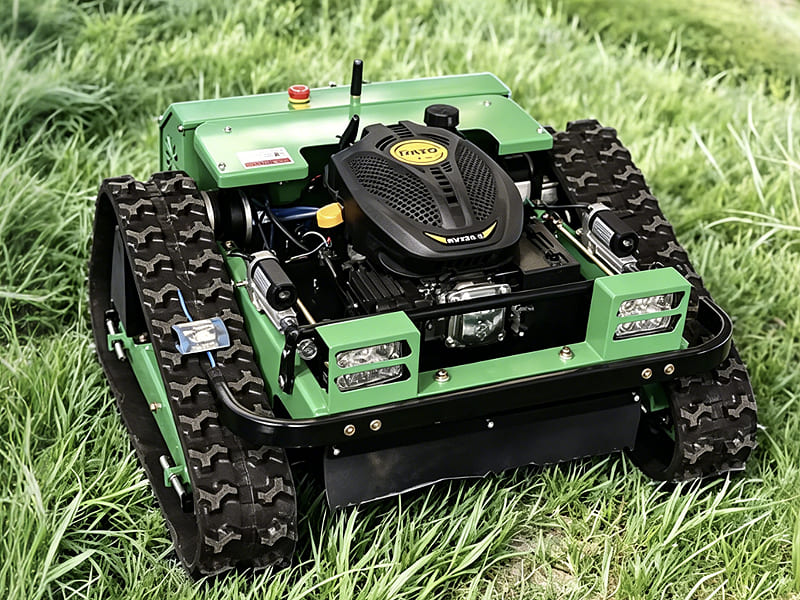

In orchard harvesting, weeding and small agricultural robots, miniature cylinder drive joint rotation, gripper actuation or chassis suspension lifting, achieving precise motion in severe outdoor conditions.

They are well suited to these environments because multi-lip polyurethane dust seals or external bellows effectively block mud and dust, while induction-hardened and hard-chrome-plated rods resist scratches. Lightweight aerospace aluminum or thin-wall alloy steel bodies, mirror-finished bores and low-friction PTFE wear rings significantly extend battery runtime per charge.

ATC Systems in CNC Machine Tools

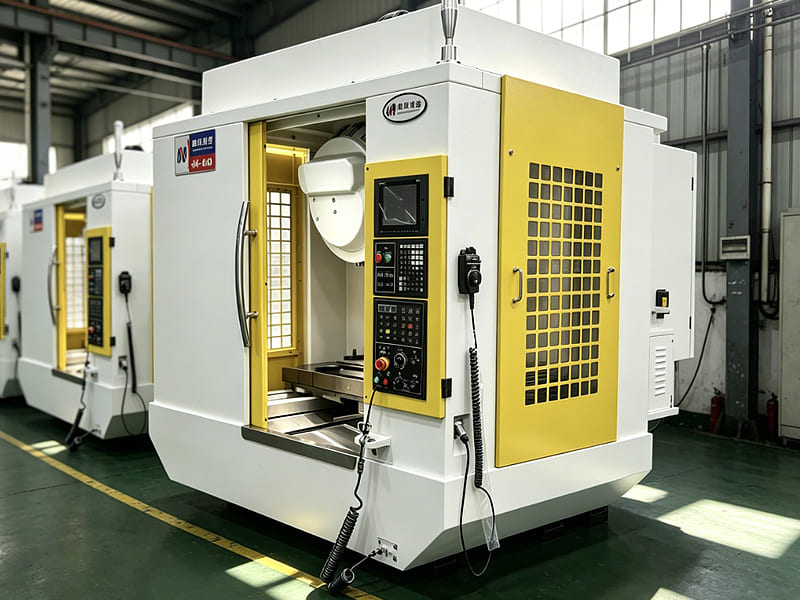

Mini small bore hydraulic cylinders are installed inside spindles or compact spaces. Machine PLC drives rapid piston rod extension and retraction, realizing tool clamping and unclamping.

These cylinders deliver stable clamping force within a short stroke. Closed hydraulic circuits absorb impact from frequent tool changes to avoid displacement. They feature shock absorption and superior wear resistance, enabling stable and reliable long-term operation under dozens of high-frequency cycles per minute.

Compact Sanitation and Municipal Vehicles

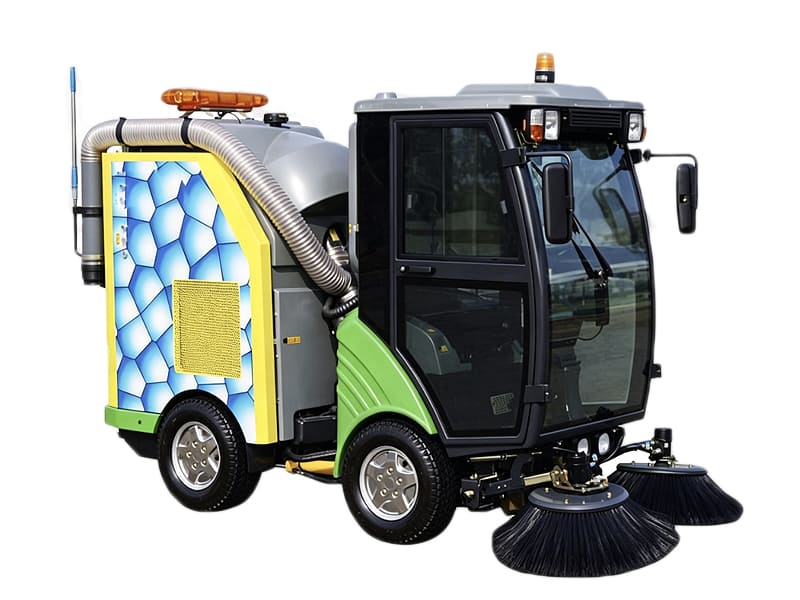

Used for dustbin lid operation, sweeper brush lifting and road maintenance mechanisms on compact sanitation and municipal vehicles, miniature cylinders withstand long-term exposure to muddy water and gravel.

Our miniature cylinders feature piston rods made of 431 stainless steel or 40Cr, induction-hardened with double-layer hard chrome plating, and pass a 96-hour salt spray test to resist corrosion. Fitted with metal-cased wiper seals and wear-resistant guide strips, they form a dual dust barrier that keeps dirty water out and prevents oil leakage.

Micro Valve Actuators

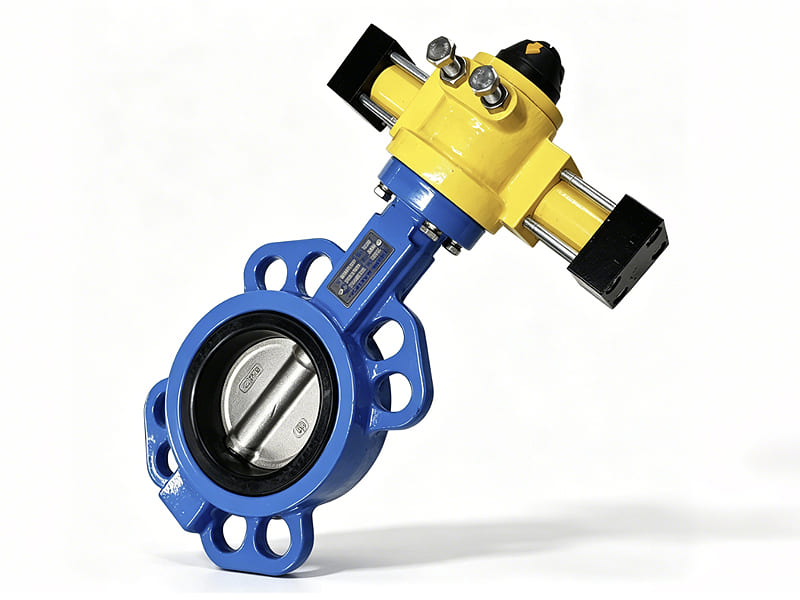

In remote pipeline systems, miniature hydraulic cylinders enable fine adjustment of valve opening. They can provide instant and reliable operation after prolonged standby, even in severe field, chemical and marine environments.

Fitted with lubricated PTFE seals to prevent adhesion and 316L piston rods with double-layer electroplating or laser cladding, these cylinders resist corrosion and provide zero-delay actuation. They withstand -40 ℃ to 80 ℃ environmental testing and full-stroke testing at ultra-low pressure, achieving fast, smooth valve closure at minimal pressure.

Stick-Slip Effect at Low Speeds on Mini Hydraulic Cylinder

Due to the small internal chamber volume of the miniature cylinder, minor oil supply fluctuations or over-tight seals may cause piston sticking. Pressure builds up steadily until the piston surges forward abruptly, resulting in jerky operation.

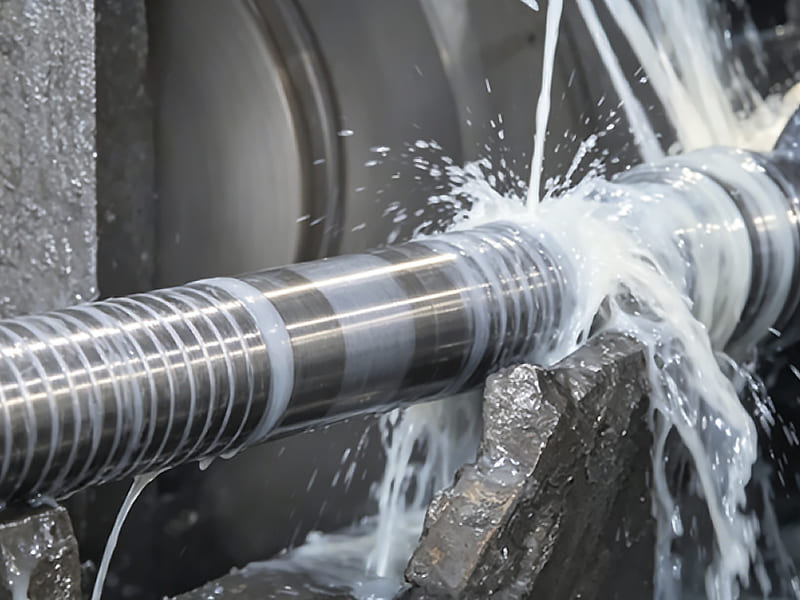

To solve this, Hydroforce adopts PTFE compounded with special lubricants in our designs to eliminate the stick-slip effect. The mini hydraulic cylinder bore and piston rod are machined to a Ra 0.05 mirror finish. With high-precision CNC grinding, all seal groove dimensions are held to micron tolerances, ensuring zero leakage under high pressure. This design also reduces the cylinder’s starting pressure, enabling the piston rod to run smoothly and steadily even at ultra-low speeds.

Side Load Tolerance of Micro Rods on Miniature Hydraulic Cylinder

Miniature cylinder piston rods are usually just a few millimeters thick. Under extended stroke conditions or eccentric side loads generated during handling and overturning, the piston rods will bend laterally.They may even scratch the cylinder bore surfaces and cause scrap.

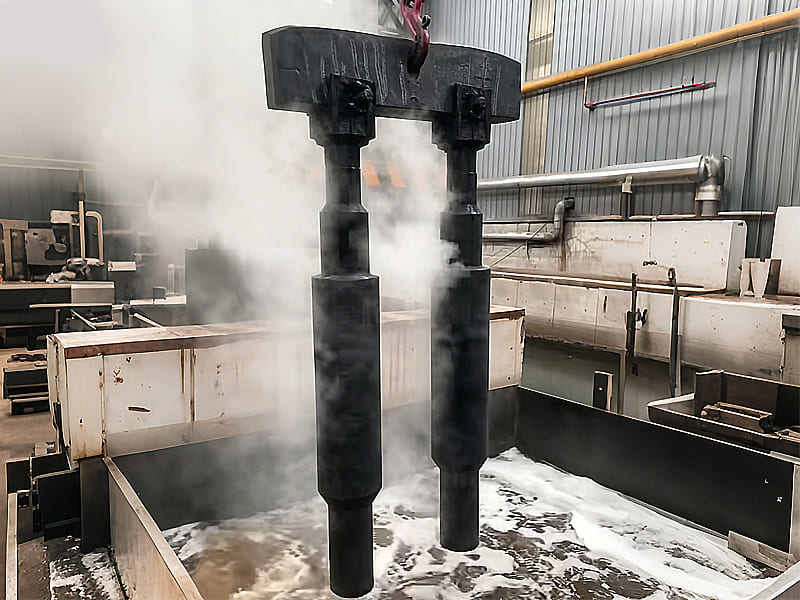

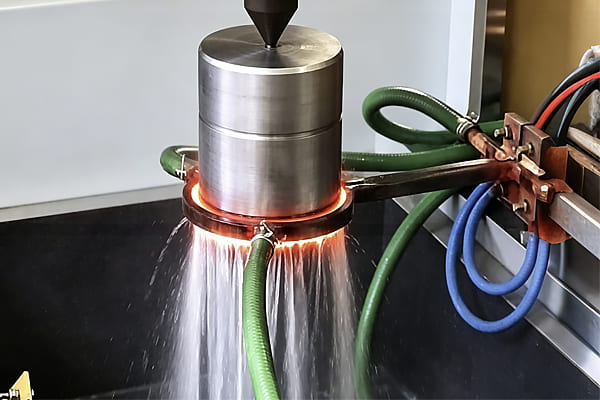

At Hydroforce, we manufacture piston rods in 40Cr or high-strength stainless steel. Each rods undergoes through quenching and tempering, high-frequency induction hardening, and final double-layer hard chrome plating. This makes the mini hydraulic cylinder piston rods sufficiently rigid to resist bending caused by side loads. We lengthen the guide sleeve and embed highly wear-resistant phenolic resin guide strips within it. These strips evenly disperse side loads, allowing the piston rods to operate stably under heavy eccentric loading while preventing seizure and excessive local wear.

Reliability of Micro Threaded Ports on Micro Cylinders

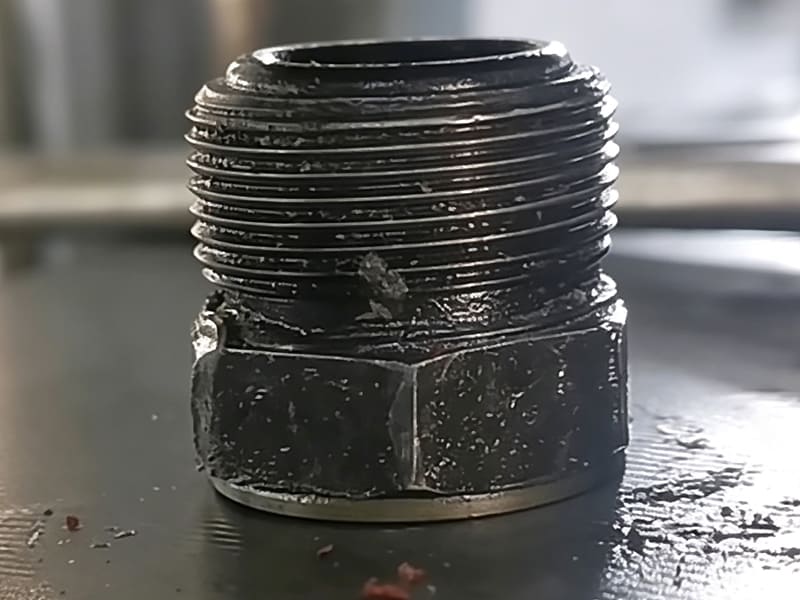

The oil port threads on miniature cylinders are usually M3 or M5, when suffer sudden direction changes or high-pressure impacts occur, violent pressure pulses will form at the oil port. Over-tightened or the equipment suffers long-term high-frequency vibration may cause oil leaks and machine shutdowns.

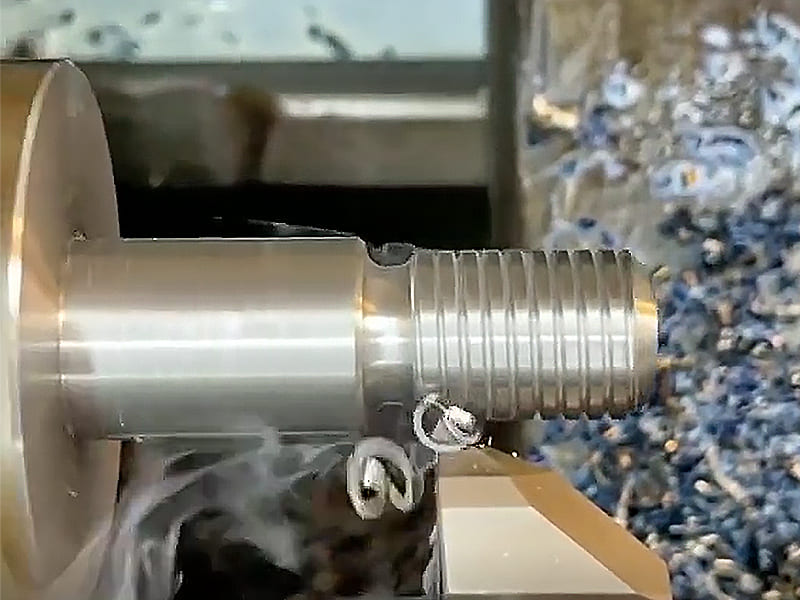

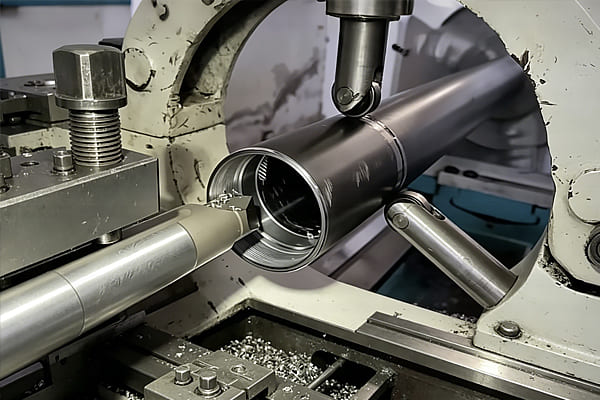

To address this problem, we require the micro cylinder heads and integral cylinder bodies to be manufactured from 40Cr tempered steel or high-strength aviation aluminum for higher shear strength. All threads are fully milled on CNC centers with small solid carbide thread cutters, enabling even force distribution during fitting installation.Where space permits, we recommend that customers use our custom fine-pitch threads with metal step hard seals or choose subplate mounting with O-ring face seals and screws, eliminating the stress concentration risks.

Certifications

REACH Certificate

ISO 9001 Certificate

ISO 14001 Certificate

Certificate of Conformity

Why Choose Us

Precision Machining

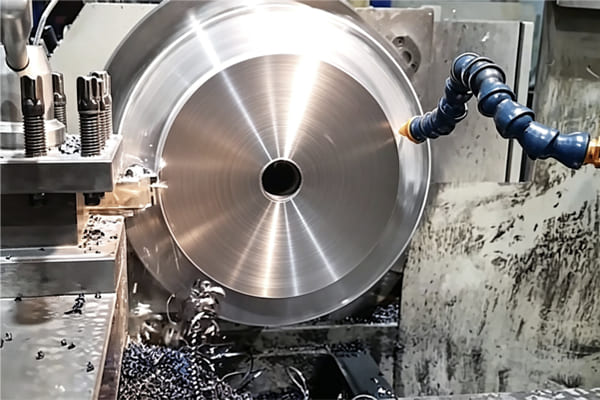

We can solve problems including stick-slip of piston rods at low speeds and deformation on micro hydraulic cylinders by adopting precision machining.

Materials

We can compare and replace materials according to standards of different countries to ensure material performance meets the drawing requirements.

Customized Solutions

By customizing machining and structural details to fit diverse working conditions, we guarantee long service life and stable operation on micro cylinders.

Quality Testing

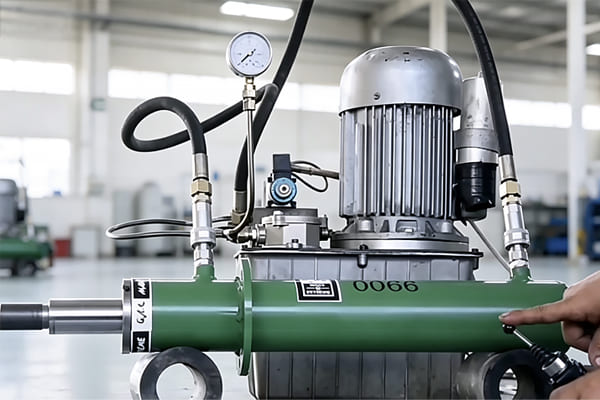

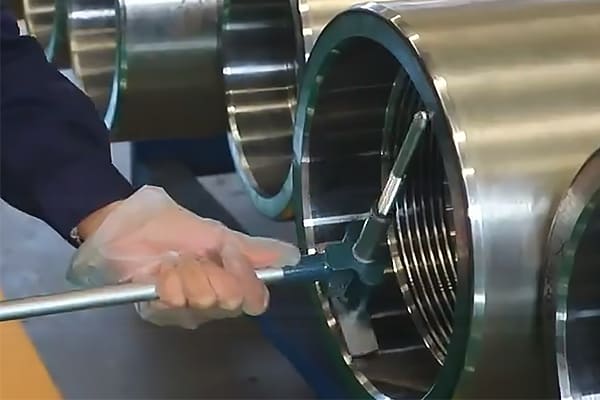

We strictly carry out dedicated product tests according to customers' technical agreements to ensure all miniature cylinders meet standards before delivery.

Technical Communication

Our engineers work directly from customers’ original drawings, making cross-border technical communication effortless and efficient.

Flexible Prototyping

We operate dedicated flexible prototyping lines, independent of mass production schedules, saving customers significant time.

Proven Experience

We have extensive experience with hundreds of complex working conditions and can provide reliable solutions for serve environments or structural requirements.

After-sales support

We provide one-on-one after sales support, including diagnostics and recommendations for any operational problems.

Customize Your Mini Hydraulic Cylinder

Customization of small bore hydraulic cylinder begins with your 2D or 3D drawings marked with bore, rod diameter, stroke, and rated pressure. We will consider your equipment’s operating conditions, which serve as the foundation of our process evaluation. Our team reviews drawings and offers process improvements. After confirmation, we issue a detailed quotation including materials, tests and lead time, then sign a custom contract to launch the project.

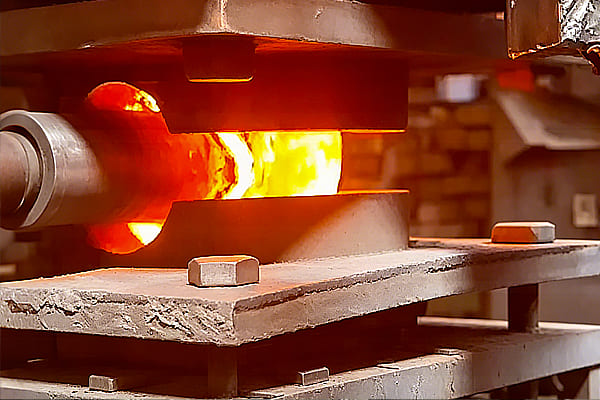

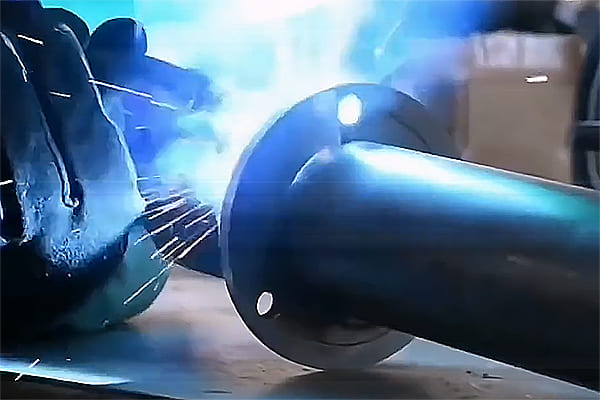

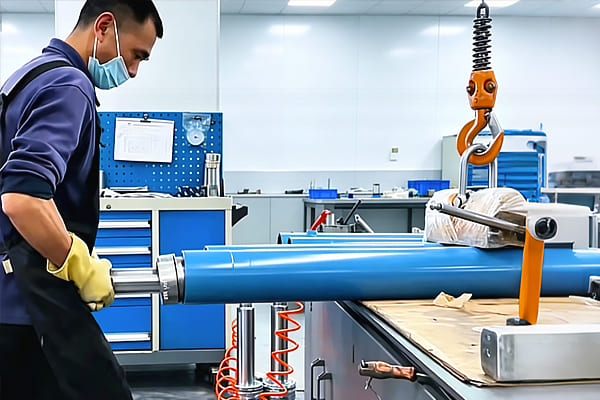

These small cylinders are produced on dedicated flexible lines. Quenched and tempered steel tubes and rods are mirror ground for durability. You can check production progress anytime during manufacturing. All finished products pass strict pressure tests, go through anti-rust treatment and are packed in fumigation-free wooden cases with full inspection reports.
