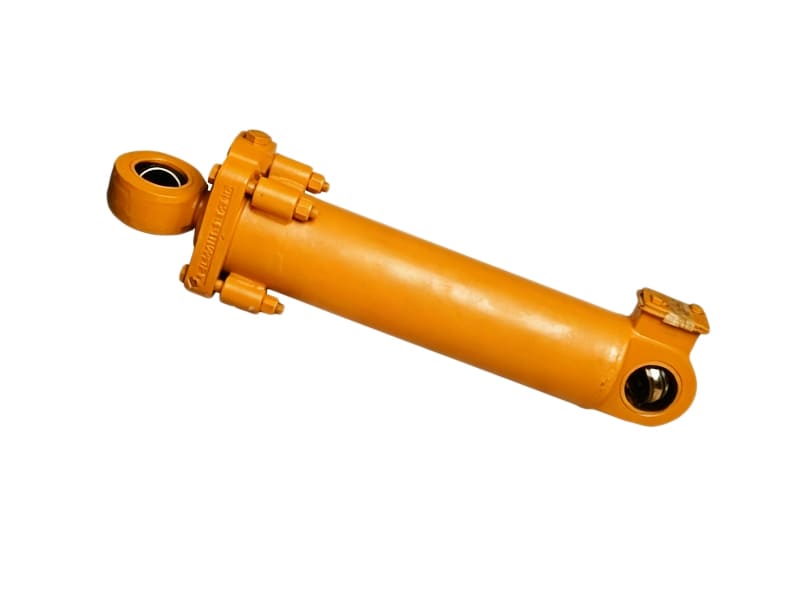

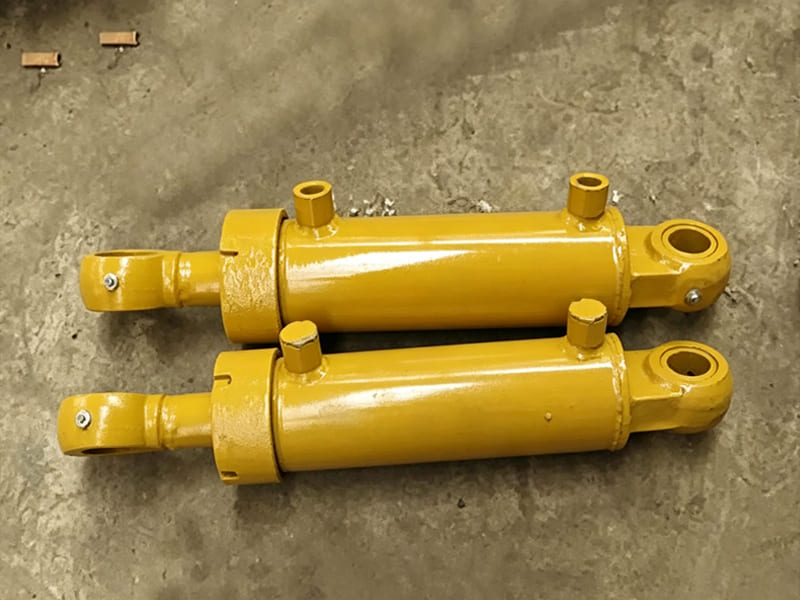

Loader Hydraulic Cylinders

Loader hydraulic cylinders are fitted on loaders to power the machines, they are all double acting cylinders. Hydraulic oil pressure pushes the piston to lift, tilt and steer the bucket. They are widely used in construction, mining, port logistics, agriculture, and other industries.

We select core cylinder parts based on working conditions. For high-pressure heavy-load applications, the cylinder tube uses 27SiMn high-strength silicon-manganese alloy steel. After quenching and tempering, its tensile strength reaches 980MPa. It can withstand high pressure impacts and resists deformation or cracking. For dusty sites with sand and stones,the piston rod is also quenched and tempered, and then go through hard chrome plated. The surface hardness can reach HV900–1000. This helps resist scratches from sand and stones, extending the cylinder’s service life.

We use deep hole boring, special boring tools go inside the long hole to cut and finish the inner wall of cylinder tubes, This ensures precise bore size and smooth surface. We can also customize production according to your drawing requirements.

Your Reliable Supplier of Loader Hydraulic Cylinders

We have been making cylinders for different types of loaders, including wheel loaders and skid-steer loaders for many years, so we have a lot of experience in this area. We once helped a customer solve an oil leakage problem caused by high-frequency vibration. The original cylinder worked under 40~60Hz continuous vibration, which caused the guide sleeve to loosen and seals to fail. We changed the connection design, replaced the threaded connection between the guide sleeve and cylinder head with lock keys and retaining rings, we also upgraded the piston rod seal from single-lip to double-lip type. The new design prevents loosening under high-frequency vibration, and the double seals work better to stop oil leaks. After the modification, the cylinder ran stably for over 4,500 hours without leakage.

Can customize production based on your drawings and actual working conditions. We also offer technical consultation and working condition analysis. If needed, we can even provide optimization suggestions.

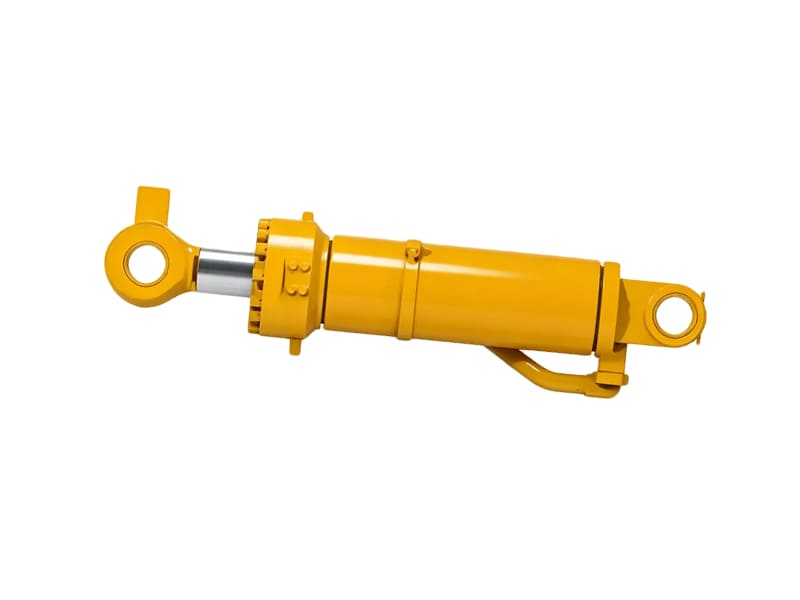

Loader Hydraulic Cylinders

Applications of Loader Hydraulic Cylinders

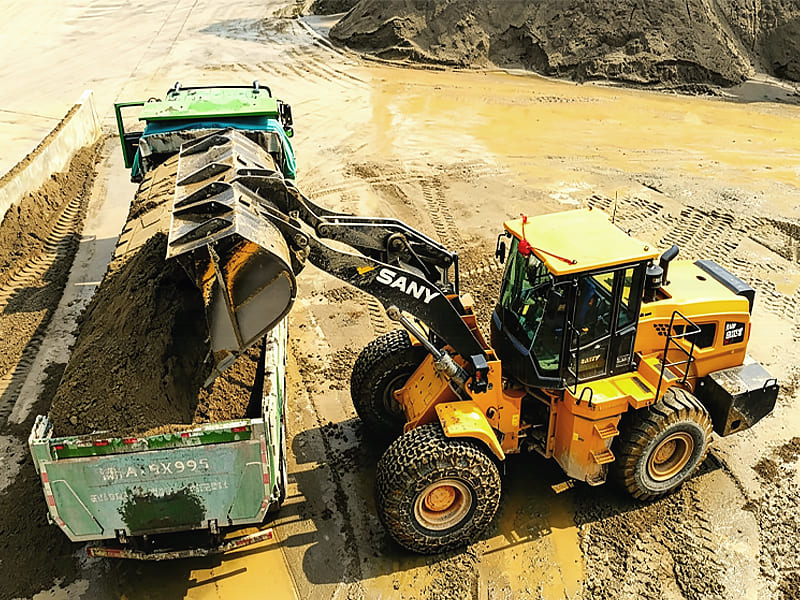

Boom Lifting and Lowering

Loader hydraulic cylinder is used for boom lifting and lowering, through hydraulic oil pushes the piston rod out, turning the boom around its hinge point to lift the load. When the piston rod retracts, it pulls the boom down smoothly. The cylinder is equipped with hydraulic control valves that can adjust oil flow. This stops the boom from shaking during lifting and lowering, reduces material down, and keeps the machine running steadily.

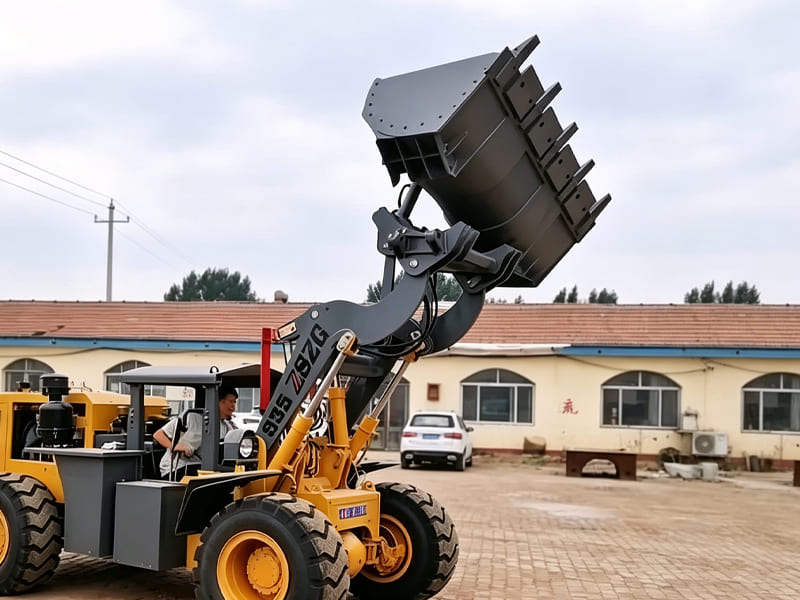

Bucket Dumping and Crowding

Loader hydraulic cylinder is used for bucket dumping and curling. High-pressure oil enters the cap end to extend and retract the piston rod, rotating the bucket around the hinge point , make material dump forward and curl the bucket back for loading. The piston rod is made of 42CrMo high-strength alloy steel, and the cylinder tube uses 27SiMn alloy seamless steel pipe. This materials have excellent impact resistance, can withstand sudden shock loads during scooping.

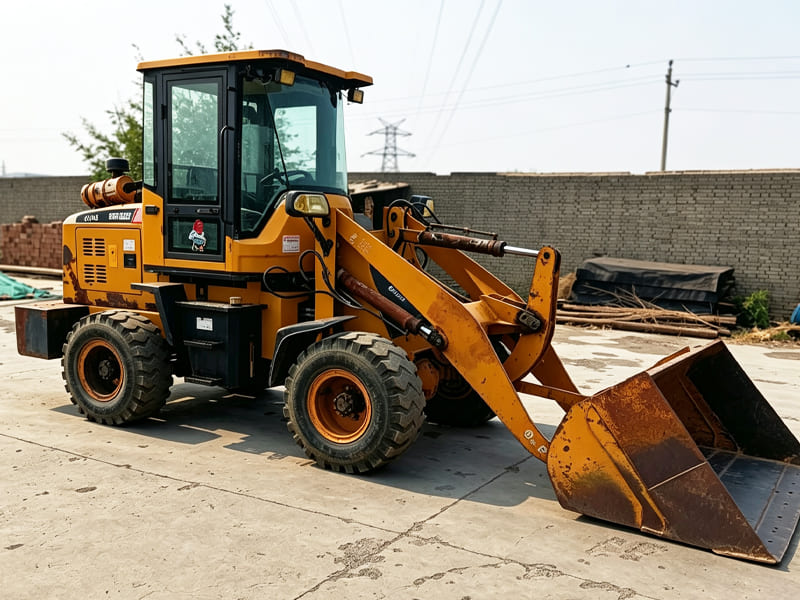

Bucket Leveling and Resetting

Loader hydraulic cylinder is used for automatic bucket leveling and resetting. Hydraulic oil pushes the piston rod out to make the bucket back to a flat position. Once it reaches the set position, a travel valve will cut off the oil flow, stopping the cylinder so the bucket resets automatically. The cylinder barrel is precision machined through rough boring and honing, so the cylinder has low working stroke error, this ensure bucket returns to the exact position .

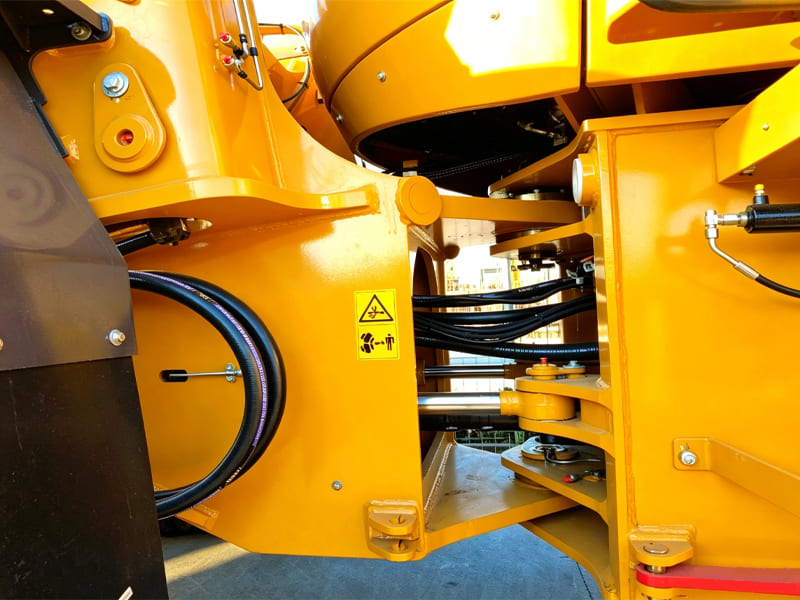

Steering Axle Swing Locking

This loader hydraulic cylinder is also used in swing locking of the steer axle. It mounts between the steering axle and the frame. When the rod extends and retracts, it moves the lock pin in and out of the locking hole, locking or unlocking the steer axle. The cylinder has a short stroke, so can finish movement within 0.3 seconds. When driving on steep slopes or slippery roads, the operator can lock the axle right away without stopping the machine.

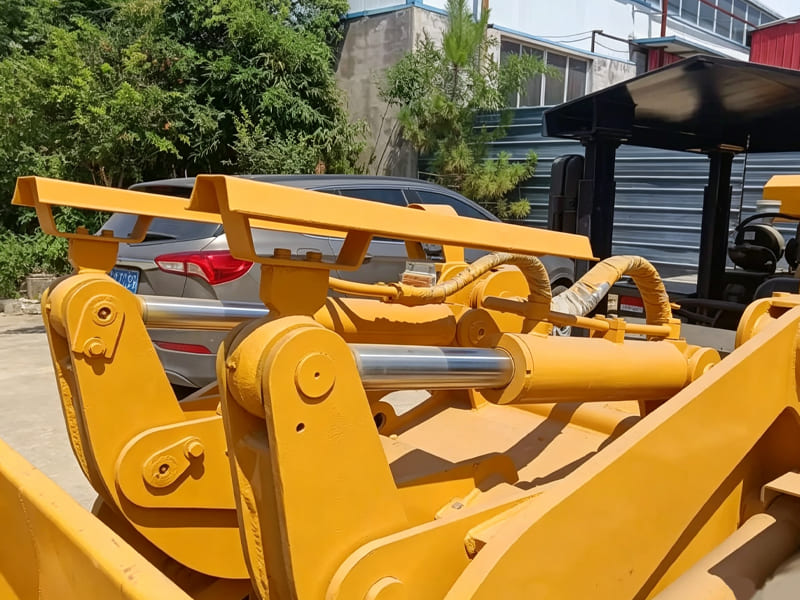

Attachment Gripping and Clamping

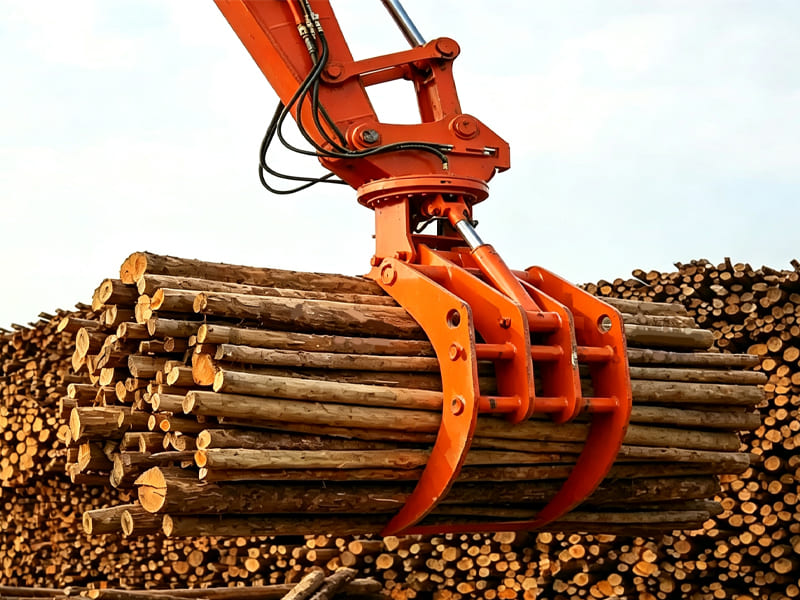

Loader hydraulic cylinder is used for attachment clamping and grabbing. The cylinder hinges to the grab arms at both ends. As the piston rod extends, the clamp arms close to grip materials. When it retracts, the arms open to release the load. The cylinder uses a combined seal set of Glyd rings and Step seals. It can maintain stable sealing performance under repeated open-close cycles.

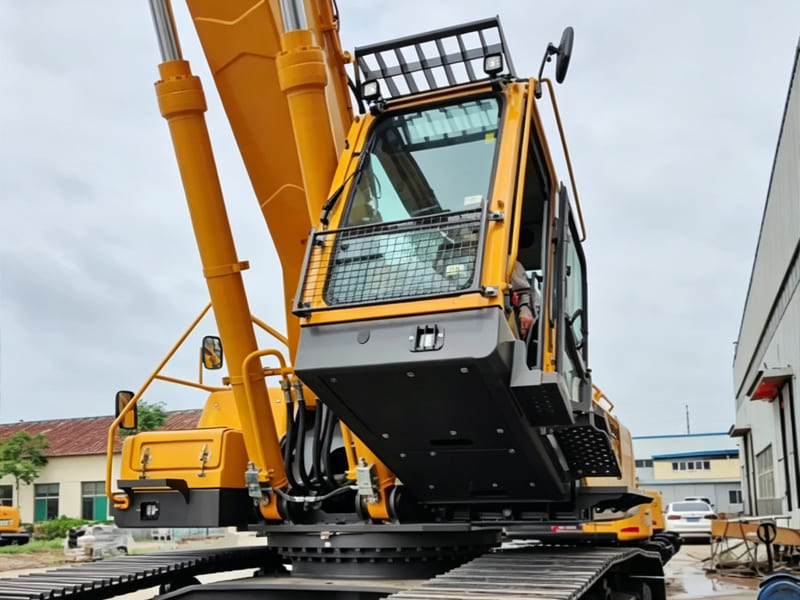

Cabin Tilting for Maintenance Access

Loader hydraulic cylinder is used in cab tilting. Oil pressure pushes the rod out to lift and lock the cab. To reset it, open the relief valve, and depend the cab's weight lets the cylinder retract slowly. The cylinder has a mechanical lock ring inside, If the cylinder fails, it locks quickly to stop the cab from dropping and protect operators.

Rod Micro-Bending Under Shock Overload

When a loader suddenly digs into a rock pile, the bucket takes a heavy hit, sending strong impact force to the piston rod. This heavy impact can cause invisible bending on the piston rod of standard cylinders. The bent rod will wear out seals, increase internal leakage and reduce the cylinder’s pushing force.

The guide sleeve supports the piston rod when it extends during work. So we lengthen the guide sleeve to offer better support and improve the rod’s resistance to bending. The rod is made of 42CrMo high-strength alloy steel and goes through deep ion nit-riding treatment .After that its surface hardness reaches over 650HV. This helps it withstand heavy impact, prevent rod bending, and avoid seal wear and internal leakage.

End-of-Stroke Cushioning Failure Causing Hard Impact

When the loaded boom drops quickly, the piston moves at high speed toward the cylinder end cap. If there's no cushioning inside the cylinder,the piston will hit the cylinder bottom hard. This impact creates huge force, making the machine shake and disturbing the operator. It may also cause weld cracking.

To prevent this, we fit a multi-stage cushion plunger inside the cylinder. It uses three part design with two tapered surfaces plus one cylindrical section. It slows the piston step by step: first gentle speed reduction, then rapid throttling, and finally smooth braking. The piston slows to a stop before it hits the end cap. This prevents impact and protects the machine and cylinder from damage.

Non-Universal Replacement Mounting Dimensions for After-Sales Service

In market there have many types loader models, so cylinders have big differences in mounting dimensions and port specifications. A standard cylinder often cannot be fitted directly. Customers have to change parts on site after receiving the cylinder, which adds extra costs and machine downtime. Even it can be mounted, it may have dimensional errorsand affect equipment using.

Our solution is simple. we take the machine model and key dimensions from the customer, then work out the right mounting distance, earring width, pin hole diameter, and we produce cylinders using these figures. Make sure the cylinder can be installed directly when it arrives, and it don’t need to make any modifications on site. This reduces machine downtime.
